Our Progress So Far

Team Formed

March 2019

After passing the Gemstone team selection process, Team Autocycle (formerly SAFE-Bike) was established by 14 undergraduate students to develop an autonomous bicycle system to alleviate logistical hurdles faced by bikeshares.

Autocycle in March 2019
Dr. Romel Gomez

Mentor Appointed

June 2019

Following consultation with Gemstone staff, Dr. Romel Gomez of the Department of Electrical and Computer Engineering was appointed as the faculty advisor to Team Autocycle. Dr. Gomez has been instrumental in providing the team with valuable feedback, access to resources, and sage advice.

Image Analysis and Simulation Begun

September 2019

With the start of the Fall 2019 semester, Team Autocycle began work on the first stage of its research, namely developing a simulator to model the behaviour of a bicycle under various control systems and training a classifier to identify objects important for bicycle navigation in a stream of images.

Example of image analysis
Original bicycle prototype

Bicycle Prototype Acquired

November 2019

While a proper simulation was important to save time by testing numerically prior to testing empirically, the team would soon enough need to have a physical prototype for experimentation. The chosen bicycle, christened "Otto von Cycle", would go on to be the platform for empirical testing and eventual modification for stability and navigation.

Empirical Characterization

November 2019

As work continued on coding the simulator and elements of the navigation system, parts of the team began work on empirical measuring the critical quantities of the bike frame such as the weight, center of mass, and moments of inertia of each of the four primary components. These values would eventually be used as parameters in the simulation and be important for properly tuning the stability control loop.

Taking COM measurements
Example simulation result

Simulation Completed

January 2020

As January drew to a close, a fully functional version of the simulator was put into service. The program could simulate the behaviour of an arbitrary bicycle traversing a flat plane in its linear region subject to an arbitrary control function with arbitrary initial conditions. As the semester went on, additional features, including a PID autotuner, would be integrated into the system.

Thesis Proposal Defense

February 2020

At the beginning of Spring 2020 semester Team Autocycle presented its final Thesis Proposal to a committee including Gemstone staff, the team's mentor and librarian, and an outside expert, Dr. William S. Levine of the Department of Electrical and Computer Engineering and the Institute for Systems Research. The team outlined its plans for answering their research questions through the development of the autonomous bicycle system and how these plans would be executed.

Thesis proposal defense
The team working on firmware to control the electric drive motor

Initial Firmware Integration

February 2020

With the simulation in a fully working state, it was time for the team to move on to writing code to control and sense from the actual Autocycle prototype. To that end, a drive motor was acquired, its input and controls characterized, and code for a microcontroller began to be developed to execute the tuned control loop on the physical prototype in real time.

Local Path Planning

February 2020

On the navigation side of the project, with a sufficiently robust image analysis system developed it was necessary to move on to generating local paths for the bicycle that could avoid the detected obstacles. This was done using bezier curves, which after translating an obstacle into a straight line obstruction could ensure the path from the designated start and end points would not collide with any blockers.

Sample obstacle avoidance path
Grinding the hub of the prototype to fit the drive motor

Prototype Modifications

March 2020

Moving into late spring, the team began preparing the prototype chassis to be outfitted with sensing and actuation equipment. This required several modifications to the chassis itself to accommodate the drive motor's mounting on the hub and the attachment of the front handlebar control servo motor.

Machining and Actuator Integration

October 2020

Going into the Fall of 2020, Team Autocycle began turning its theoretical and simulated results into practice. Having acquired appropriate actuators to exert the necessary control torques on the prototype, the team deployed and refined the stabilization firmware while also machining the required custom components to couple said actuators to the Autocycle prototype.

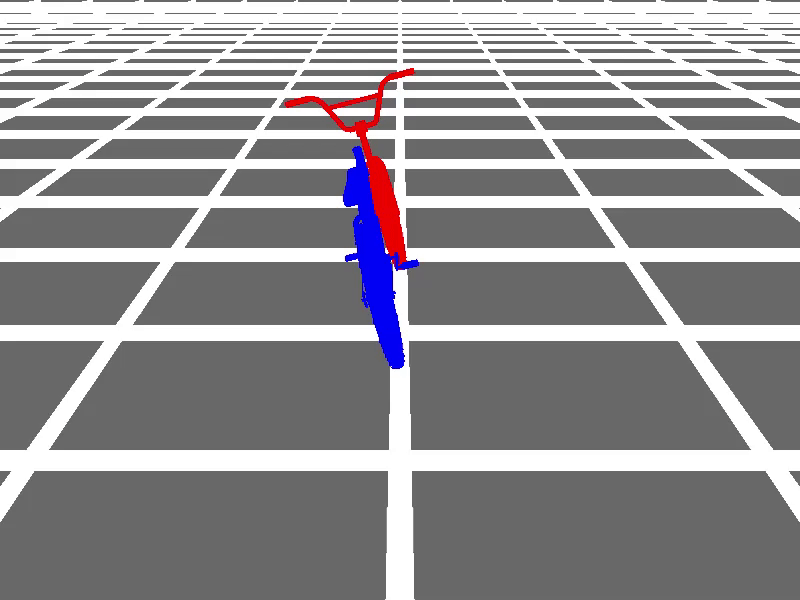

Animation of simulated control system results

Do Good Showcase

November 2020

In November of 2020 the team presented its findings so far to their peers, Gemstone faculty and staff, and the Do Good Institute of the University of Maryland. The presentation detailed the team's rationale for pursuing the project, its expected deliverables, the progress that has been made to achieving the team's goals, and how the project's outcome will Do Good.

Initial Self-Balancing Experiments

January-March 2021

Beginning in the winter of 2021, the team began carrying out experiments to test the control laws meant to ensure the self-balancing of the bike. These experiments gave the team experience in data collection and procedure, while also revealing flaws in the hardware of the Autocycle prototype, including weakness in the tensioner, coupler, and other components.

Zero Speed Stability System Design

April-June 2021

One of the issues revealed by initial testing was the need for a system to keep the Autocycle prototype level before it had gotten up to speed and was able to exert control authority via steering torque. To resolve this, a set of deployable training wheels was designed and christened the Zero Speed Stability system (ZSS).

Custom Electronics and Hardware

April-June 2021

At the same time, work was done to improve issues identified with other hardware elements (by upgrading to stronger materials and manufacturing methods), and electronics. Notably, a custom circuit board was designed to integrate higher capacity data logging, brake control, and radio telemetry.


Experimentation and System Identification

July-November 2021

The Stability subteam continued experiments with the new hardware, increasing the frequency and tempo of experiments, and used data based methods to perform system identification on the parameters of the system to find more robust control gains.

Local Path Planning Experiments

September-November 2021

In parallel, the Navigation subteam carried out experiments to validate their obstacle detection and path planning algorithms at low speed, with the ZSS deployed. This process revealed many areas for improvement and helped the team solidify its code in preparation for integration with Stability.

Successful Self-Balancing

December 2021

After much work tuning gains, debugging firmware and hardware issues, and adjusting system model parameters, the team was able to arrive at a control that successfully balanced the Autocycle over a significant distance and rejected disturbances.

Heading Control

Winter 2022

In 2022 the team built on top of the proven stability and steering control to implement a cascaded proportional heading controller to keep the Autocycle headed in a commanded direction. This controller was demonstrated and validated.
